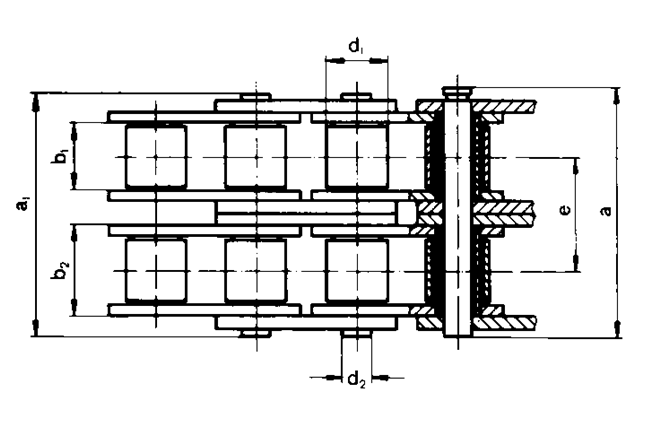

| DIN ISO No: | p mm. | b1 mm. Min | b2 mm. Max. | d2 mm. | d1 mm. Max. | a1 mm. Max. | a mm. Max. | e mm. |
| 05B-2 | 8,00 | 3,00 | 4,77 | 2,31 | 5,00 | 14,30 | 17,40 | 5,64 |
| 06B-2 | 9,525 | 5,72 | 8,53 | 3,28 | 6,35 | 23,30 | 27,10 | 10,24 |
| 08B-2 | 12,70 | 7,75 | 11,30 | 4,45 | 8,51 | 31,00 | 34,90 | 13,92 |
| 10B-2 | 15,875 | 9,65 | 13,28 | 5,08 | 10,16 | 36,20 | 40,30 | 16,59 |
| 12B-2 | 19,05 | 11,68 | 15,62 | 5,72 | 12,07 | 42,20 | 46,80 | 19,46 |
| 16B-2 | 25,40 | 17,02 | 25,45 | 8,28 | 15,88 | 68,00 | 73,40 | 31,88 |
| 20B-2 | 31,750 | 19,56 | 29,01 | 10,19 | 19,05 | 79,70 | 85,80 | 36,45 |
| 24B-2 | 38,10 | 25,40 | 37,92 | 14,63 | 25,40 | 101,80 | 108,40 | 48,36 |
| 28B-2 | 44,45 | 30,99 | 46,58 | 15,90 | 27,94 | 124,70 | 132,10 | 59,56 |
| 32B-2 | 50,80 | 30,99 | 45,57 | 17,81 | 29,21 | 126,00 | 133,90 | 58,55 |
| 40B-2 | 63,50 | 38,10 | 55,75 | 22,89 | 39,37 | 154,90 | 165,10 | 72,29 |
| 48B-2 | 76,20 | 45,72 | 70,56 | 29,24 | 48,26 | 190,40 | 200,90 | 91,21 |
| 56B-2 | 88,90 | 53,34 | 81,33 | 34,32 | 53,98 | 223,80 | 232,30 | 106,60 |
| 64B-2 | 101,60 | 60,96 | 92,02 | 39,40 | 63,50 | 251,40 | 260,00 | 119,89 |
| 72B-2 | 114,30 | 68,58 | 103,82 | 44,48 | 72,39 | 285,00 | 293,50 | 136,27 |
